1: Gehäuse
2: Kugel
3: Kugelsitz
4: Stopfbuchse
5: Kappe
6: Spindel
7: Dichtung
8: Spindeldichtung
9: Buchse
10: Hebel
11: Spindelscheibe
12: Spindelmutter
13: Hebelschutz
14: Verschluß

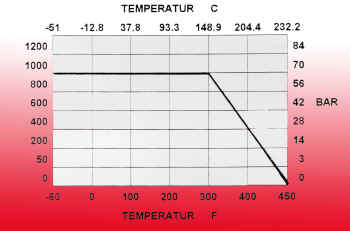

Technische Daten zu "Kugelhahn V-206"
|
1: Gehäuse 2: Kugel 3: Kugelsitz 4: Stopfbuchse 5: Kappe 6: Spindel 7: Dichtung 8: Spindeldichtung 9: Buchse 10: Hebel 11: Spindelscheibe 12: Spindelmutter 13: Hebelschutz 14: Verschluß |
| ABMESSUNGEN | VORRAT | ||||||||
| A | B | C | D | E | kg/st | 316 | |||
| NW | " | mm | mm | mm | mm | mm | BSP NPT | ||
| NW 8 | 1/4" | 11.6 | 27.5 | 55.0 | 50.0 | 100 | 0.23 | V | O |
| NW 10 | 3/8" | 12.7 | 27.5 | 55.0 | 50.0 | 100 | 0.23 | V | O |
| NW 15 | 1/2" | 15.0 | 32.5 | 65.0 | 60.0 | 130 | 0.38 | V | O |
| NW 20 | 3/4" | 20.0 | 37.0 | 74.0 | 64.0 | 130 | 0.52 | V | O |
| NW 25 | 1" | 25.0 | 44.0 | 88.0 | 71.0 | 165 | 0.92 | V | O |
| NW 32 | 1.1/4" | 32.0 | 51.0 | 102.0 | 78.0 | 165 | 1.32 | V | O |
| NW 40 | 1.1/2" | 38.0 | 55.0 | 110.0 | 86.0 | 190 | 1.90 | V | O |
| NW 50 | 2" | 50.0 | 62.5 | 125.0 | 95.0 | 190 | 3.12 | V | O |
| NW 65 | 2.1/2" | 65.0 | 81.5 | 163.0 | 130.0 | 250 | 6.50 | V | O |
| NW 80 | 3" | 80.0 | 89.0 | 178.0 | 148.0 | 250 | 9.30 | V | O |
V= Vorrat O = auf Anfrage ab Werk
