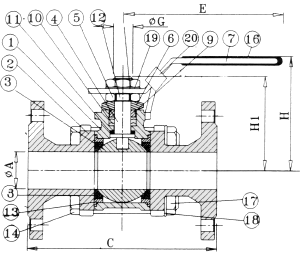

2: Endkappe
3: Kugel
4: Spindel
5: Spindelmutter
6: Spindelring
7: Hebel
8: Kugelsitz
9: Buchse
10: Spindeldichtung
11: Dichtung
12: Stopring
13: Stopfbuchse
14: Bolz
15: Stoppin
16: Hebelschutz
17: Mutter
18: Ring
19: Spindelscheibe
20: Verschluß
Technische Daten zu "Flanschenkugelhahn V-205MMF"
|
|
1:
Gehäuse 2: Endkappe 3: Kugel 4: Spindel 5: Spindelmutter 6: Spindelring 7: Hebel 8: Kugelsitz 9: Buchse 10: Spindeldichtung 11: Dichtung 12: Stopring 13: Stopfbuchse 14: Bolz 15: Stoppin 16: Hebelschutz 17: Mutter 18: Ring 19: Spindelscheibe 20: Verschluß |

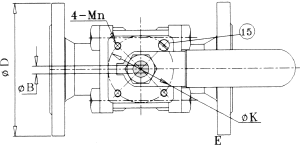

ABMESSUNGEN |
|||||||||||
| A | B | C | D | E | G | H H1 | K Mn | kg/st | VORRAT | ||
| NW | " | mm | mm | mm | mm | mm | mm | mm | mm | 316 | |
| NW 15 | 1/2" | 15.0 | 6.5 | 130 | 95 | 130 | 9.5 | 65 50.5 |
36 M5 |
1.47 | V |
| NW 20 | 3/4" | 20.0 | 6.5 | 150 | 105 | 130 | 9.5 | 68 53.7 | 36 M5 | 2.91 | V |
| NW 25 | 1" | 25.0 | 8.0 | 160 | 115 | 165 | 11.0 | 71 66.3 | 42 M5 | 3.85 | V |
| NW 32 | 1.1/4" | 32.0 | 8.0 | 180 | 140 | 165 | 11.0 | 78 65.9 | 42 M5 | 5.78 | V |
| NW 40 | 1.1/2" | 38.0 | 9.7 | 200 | 150 | 190 | 14.0 | 86 80.7 | 50 M6 | 7.66 | V |
| NW 50 | 2" | 50.0 | 9.7 | 230 | 165 | 190 | 14.0 | 95 88.0 | 50 M6 | 12.03 | V |
| NW 65 | 2.1/2" | 65.0 | 12.0 | 290 | 185 | 250 | 19.0 | 130 119.3 | 70 M8 | 17.39 | V |
| NW 80 | 3" | 80.0 | 12.0 | 310 | 200 | 250 | 19.0 | 148 125.8 | 102 M10 | 24.61 | V |
| NW 100 | 4" | 100.0 | 15.0 | 350 | 235 | 280 | 24.0 | 185 161.8 | 102 M10 | 48.83 | V |
V = Vorrat O = auf Anfrage ab Werk
