Technische Daten zu "Pneumatischer Antrieb DA"

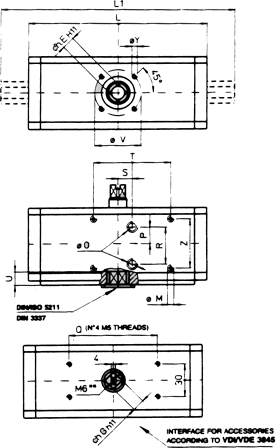

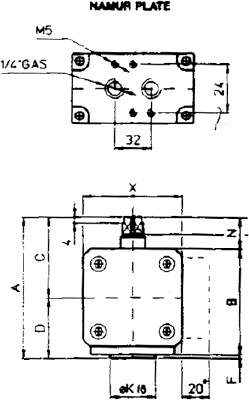

                                                        ABMESSUNGEN
type ISO Drehmoment A B E G L O T V X Y Z kg/st VORRAT
5211 Nm mm mm mm mm mm BSP mm mm mm mm mm
DA 8 F03 8 60 43 9 8 70 1/8" - 36 43 M5 x 8 - 0.29 V
DA 15 F03 15 74 52 9 8 114 1/8" 70 36 48 M5 x 9 30 0.73 V
DA 30 F03 30 82 60 9 9 130 1/8" 70 36 55 M5 x 9 36 1.00 V
DA 45 F04 45 88 66

11

 10 144 1/8" 70 42 60 M5 x 9 36 1.25 V
DA 60 F04 60 92 70 11 10 152 1/8" 70 42 65 M5 x 9 36 1.56 V
DA 90 F05 90 101 78 14 12 169 1/8" 70 50 72 M6 x 11 36 1.85 V
DA 120 F05 120 119 86 14 12 184 1/8" 70 50 80 M6 x 11 36 2.80 V
DA 180 F07 180 129 96 17 15 212 1/8" 70 70 90 M8 x 15 36 3.40 V
DA 240 F07 240 139 106 17 15 255 1/8" 70 70 100 M8 x 15 36 5.90 V
DA 360 F10 360 151 118 22 19 264 1/8" 70 102 112 M10 x 17 36 7.20 V
DA 480 F10 480 163 130 22 19 295 1/8" 70 102 124 M10 x 17 36 9.95 V
DA 720 F12 720 181 148 27 22 330 1/4" - 125 133 M12 x 21 - 12.00 O
DA 960 F12 960 187 153 27 24 384 1/4" - 125 145 M12 x 21 - 14.00 O
DA 1140 F14 1140 219 186 36 27 435 1/4" - 140 166 M16 x 25 - 19.70 O
DA 1920 F14 1920 231 198 36 32 468 1/4" - 140 180 M16 x 25 - 25.40 O

                                                                                                                                                                     V = Vorrat    O = Auf Anfrage, Ab Werk
